Sand Filters

Description

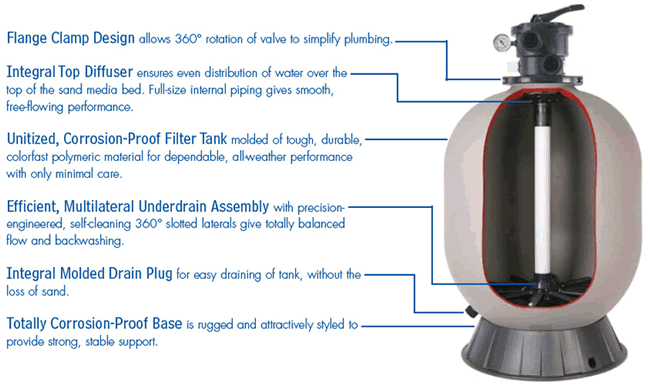

ProSeries top-mount and side-mount sand filters utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for totally balanced backwashing and long lasting performance.

Durable corrosion proof materials for dependable all weather performance
Large pressure sand/water drain for rapid winterizing or servicing
Top-mount models are available with 7-position or 6-position VariFlo™ control valve
Side-mount models are available with 6-position VariFlo™ or 2-position slide valve

Models

Model	Description
S220T	22 IN SAND FILTER
S244T	24 INCH SAND FILTER
S270T	FILTER-SAND,27IN PRO SERIES,TOP MT.
S270T2	FILTER-SAND, 27IN W/2IN VALVE
S310T2	30 IN PRO SERIES TOP MT. SAND FILTER
S360T2	36 IN SAND FILTER -TOP MT W/VALVE-

Specification

Technical Specifications

Model	Valve	Sand Required	Dimen. Width	Dimen. Height
S220T	1 1/2	250 lbs.	22 1/2	41
S244T	1 1/2	300 lbs.	24 1/2	42
S270T	1 1/2	350 lbs.	27	43
S270T2	2	350 lbs.	27	43
S310T2	2	500 lbs.	30 1/2	48
S360T2	2	700 lbs.	35 1/4	53

Performance Data - Filter

Model	Effective Filtration Area	Design Flow Rate	Turnover 8 Hrs (Gal)	Turnover 10 Hrs (Gal)
S220T	2.64 ft.2	52 GPM	24,960	31,200
S244T	3.14 ft.2	62 GPM	29,760	37,200
S270T	3.70 ft.2	74 GPM	35,520	44,400
S270T2	3.70 ft.2	74 GPM	35,520	44,400
S310T2	4.91 ft.2	98 GPM	47,040	58,800
S360T2	7.06 ft.2	141 GPM	67,680	84,600
