Multi Port Valves

The Hayward SP0710XALL Pro-Series Control Valve Vari-Flo for 1 -1/2-Inch pipe is a 6-Position Side Mount Filter Valve. Hayward’s Vari-Flo XL multiport control valve is engineered for maximum flow at lower pressure drops. All Vari-Flo control valves have an easy to use lever action handle that lets you use up to six valve/filter functions: filter, backwash, waste, rinse, closed or recirculate. This valve comes complete with an integral sight glass allowing you see when the backwashing cycle is completed.



The Vari-Flo Control Valve’s functions include FILTER – For normal filtering and regular vacuuming; BACKWASH – For cleaning filter sand bed of accumulated debris; RINSE – For use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste; WASTE – By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line; RECIRCULATE – Water is recirculated through the valve, by-passing the filter and CLOSED – Shuts off the flow from the pump to the filter. Two male threaded plugs with o-rings are also included to close the two ports that will not be used.

  • Hayward part number SP0710XALL, SP710XALL, SP-710X-ALL
  • Fits 1 1/2″ plumbing
  • 6 position multiport valve
  • 2 male threaded plugs with o-rings included to close 2 unused ports
  • 6 valve/filter functions: filter, backwash, waste, rinse, closed or recirculate
ModelDescription

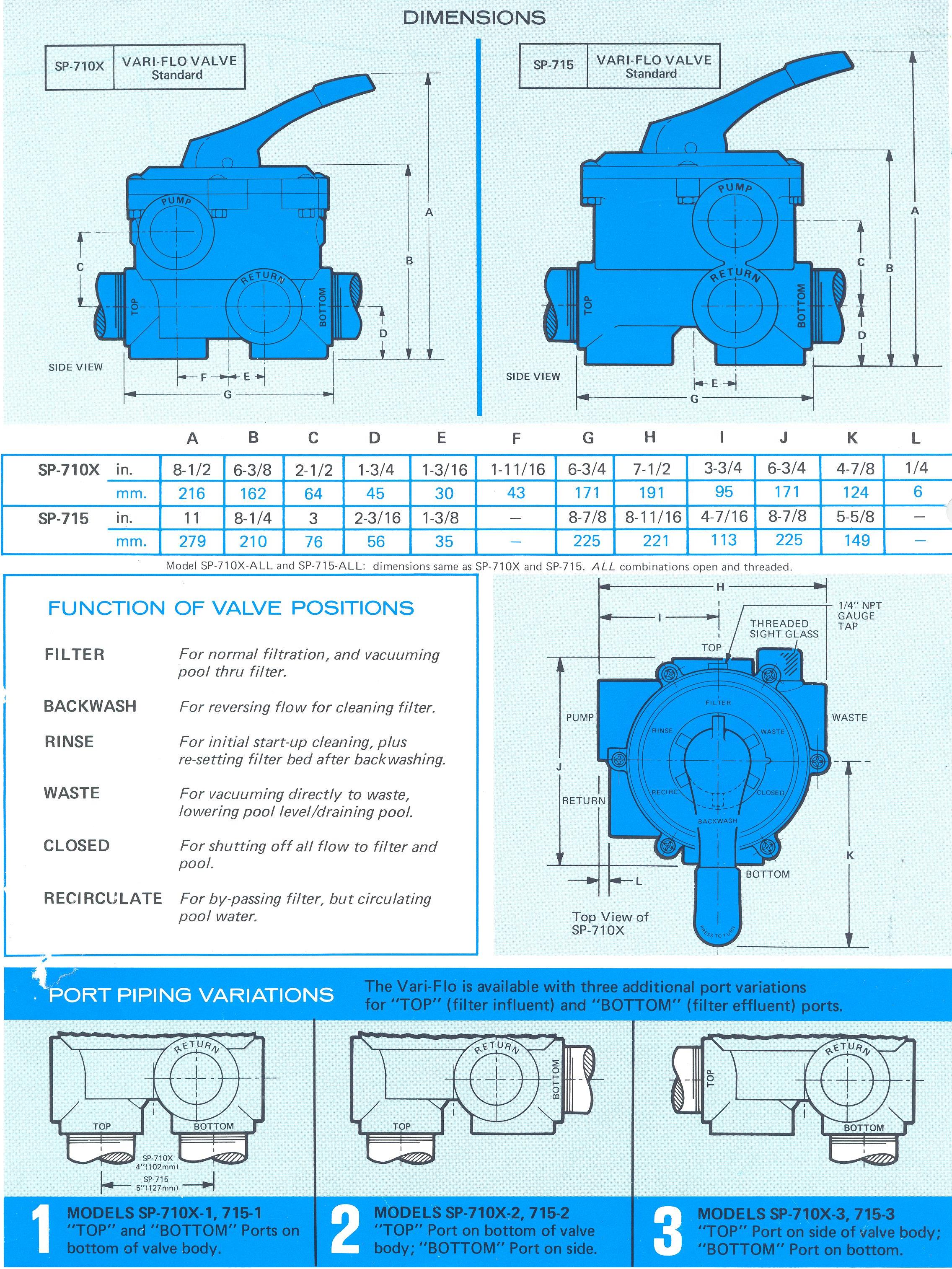

SP-710XALL1 1/2″ DIA. FIP White Universal Type without built-in elbow (DE FILTER)
SP-715XALL2″ DIA. FIP White Universal Type without built-in elbow (DE FILTER)
SP-710XR501 1/2″ DIA. FIP Black Color with built-in elbow and union kit (DE FILTER)
SP-715XR502″ DIA. FIP Black Color with built-in elbow and union kit (DE FILTER)
SP-714T1 1/2″ DIA. FIP Top Mount for Sand Filter, with Clamp included
SP-71620T2″ DIA. FIP Top Mount for Sand Filter, with Clamp inculded

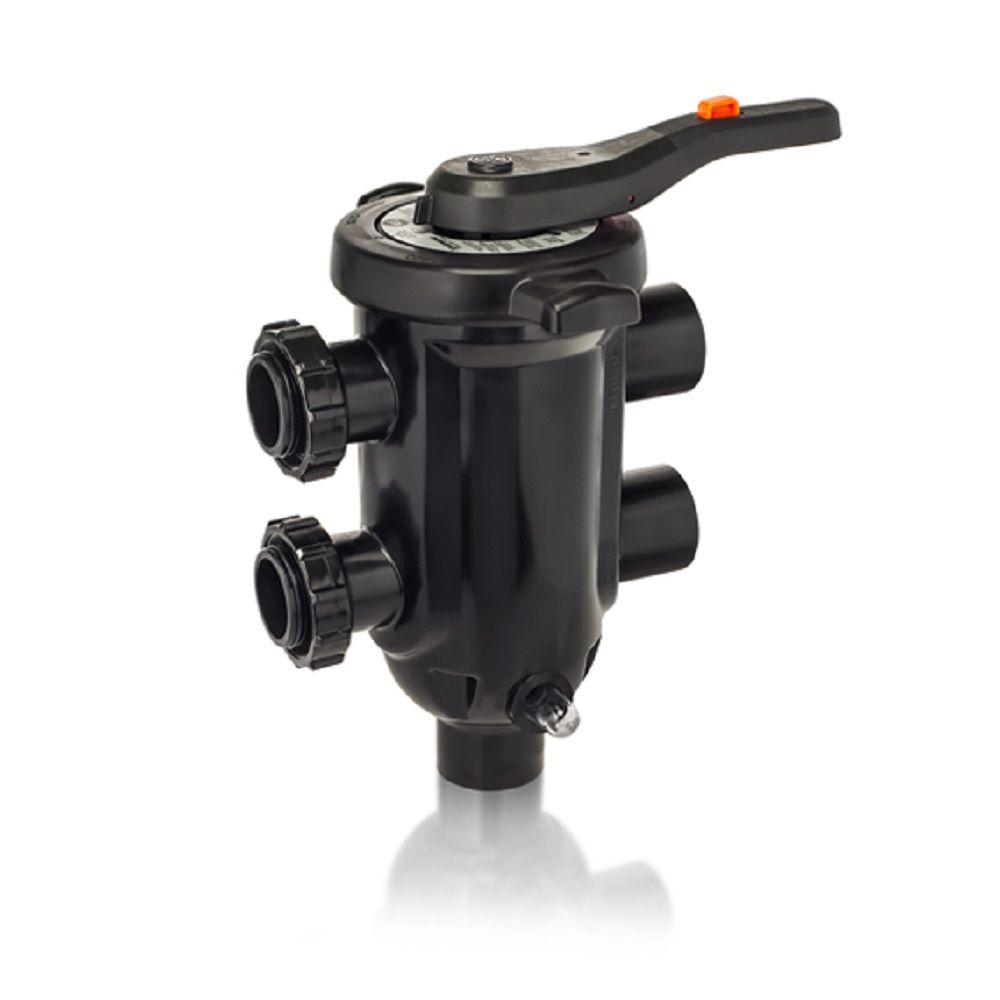

SP-0410X502S2″ DIA. FIP SKT, Slide Valve with built-in union

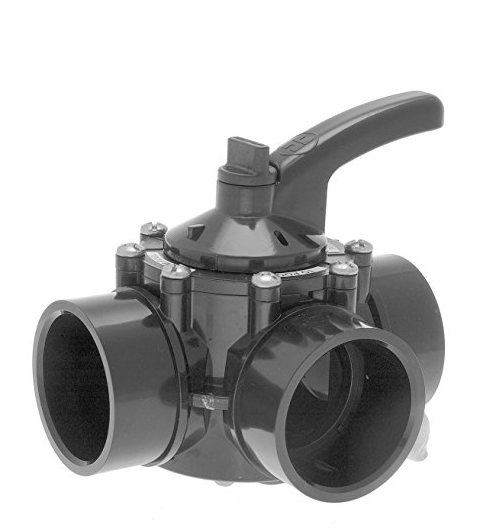

PSV3S3-way, 3-Port 1 1/2″ DIA. SKT and 2″ DIA Slip Diverter Valve
PSV3523-way, 3-Port 2″ DIA. SKT and 2 1/2″ DIA Slip Diverter Valve
